GENERATOR STATOR YAM YXZ1000R 19-21 (RMS010-107076)

Regular price $509.89
/
Tax included.

Only 1 items in stock!

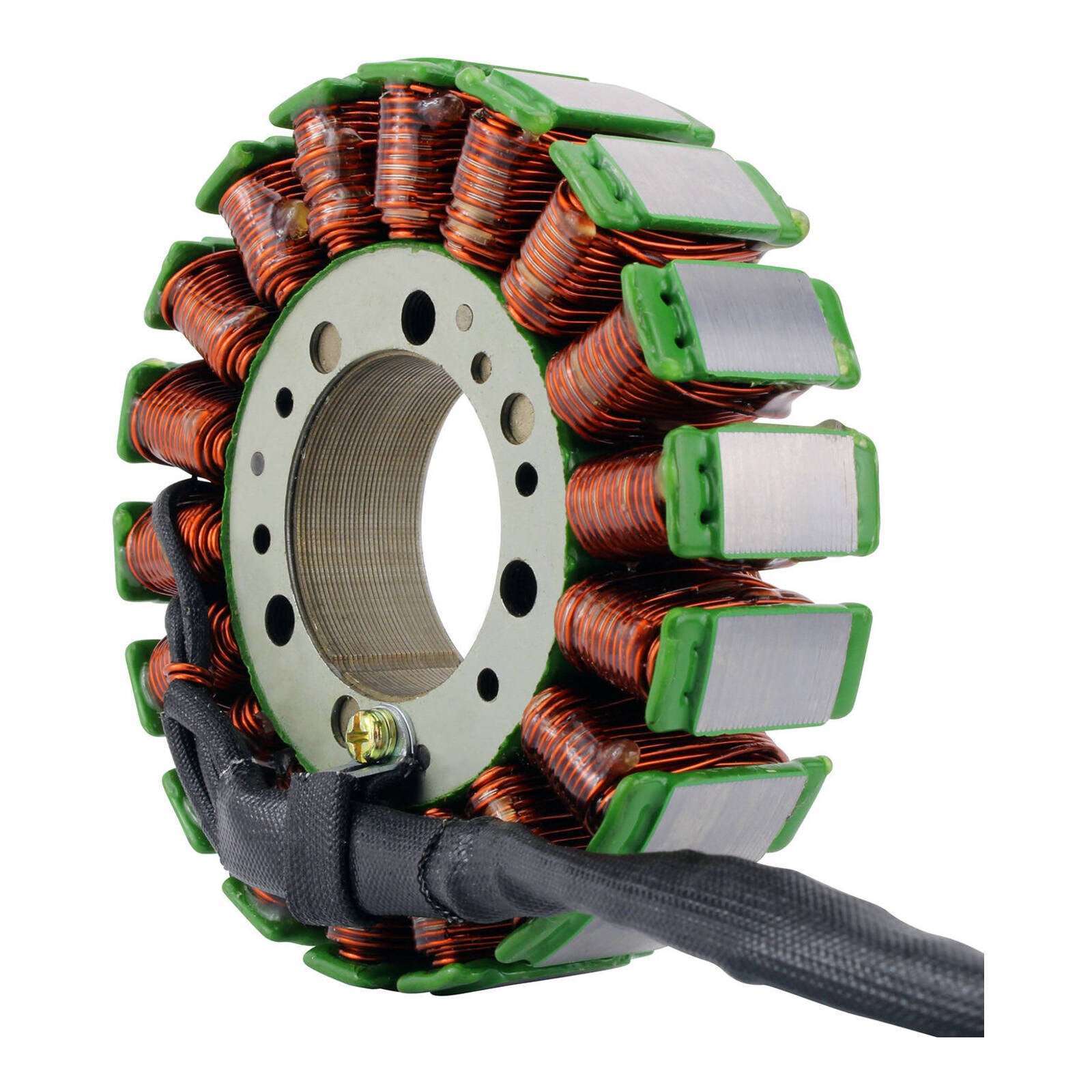

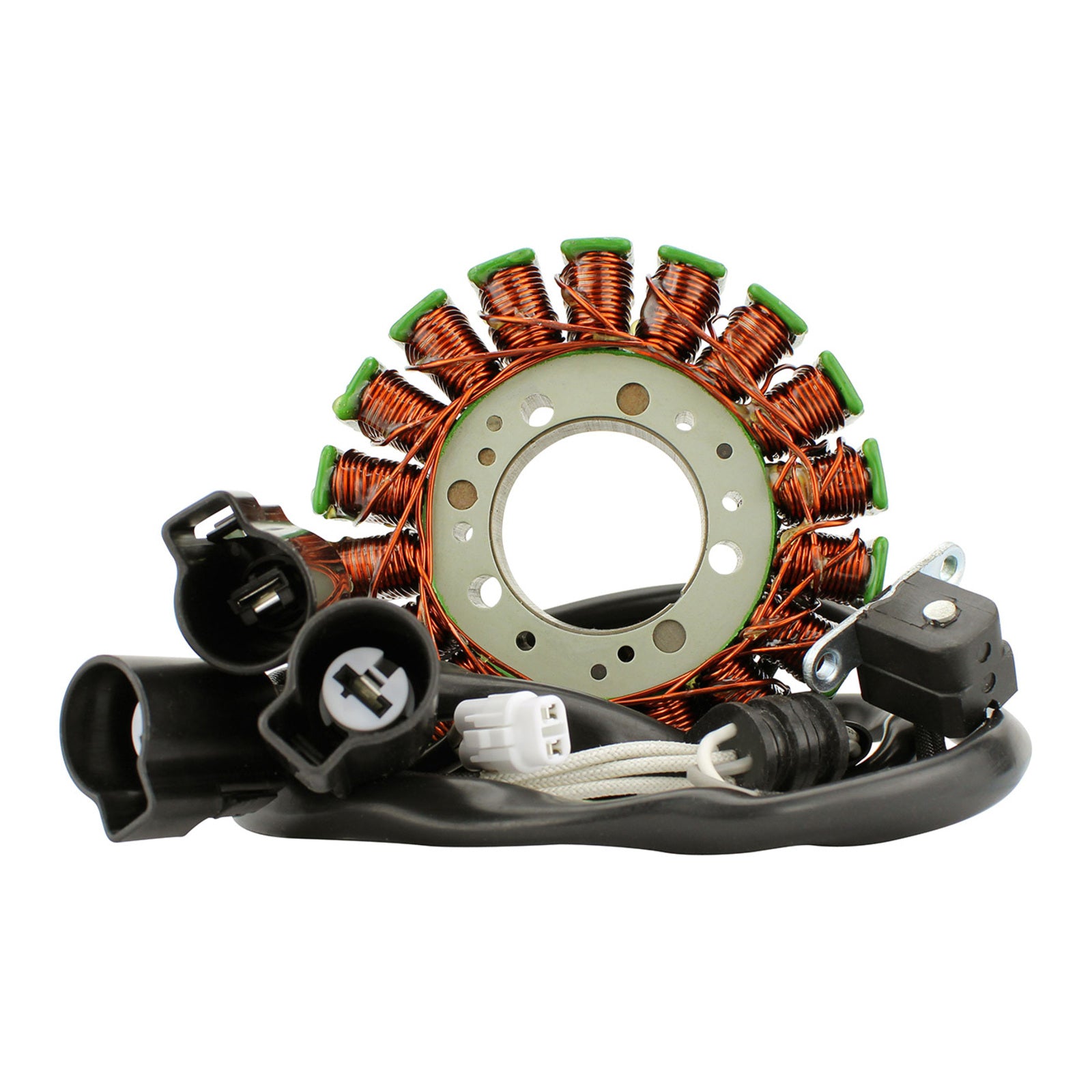

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Thickness: 23 mm
  • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 1020 mm
  • Length of pickup coil's wire to grommet: 110 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 4
  • Number of holes: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: White to White = 0.5 ohms +-20%
  • Pickup: Black to Grey = 512 ohms +-20%
