- You must re-install your original connector and grommet (see picture)
- Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install
- Pickup pulsar coil included (separate)
- Higher grade of electric components
- Highest grade of copper winding, resistant to 200 degrees Celsius
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

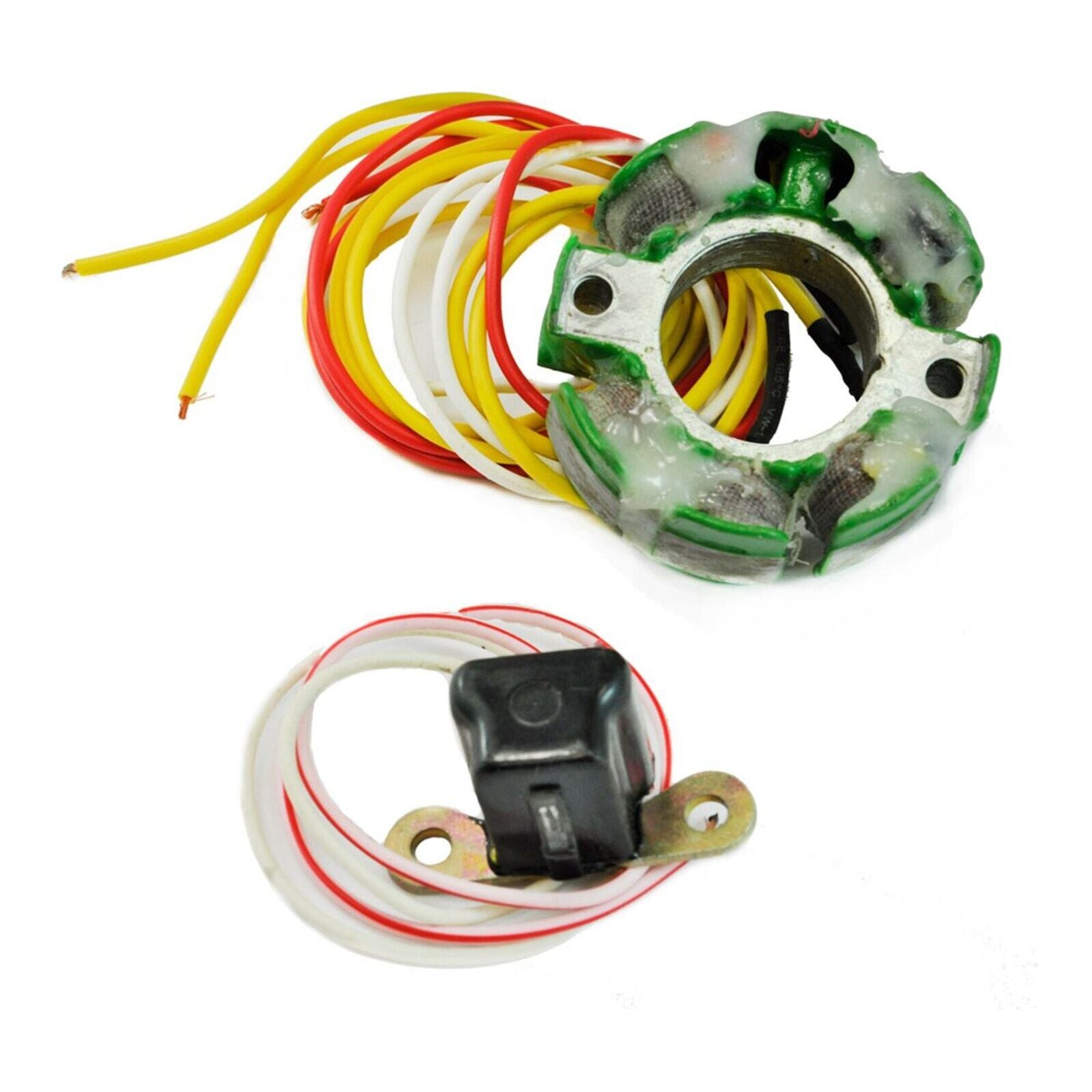

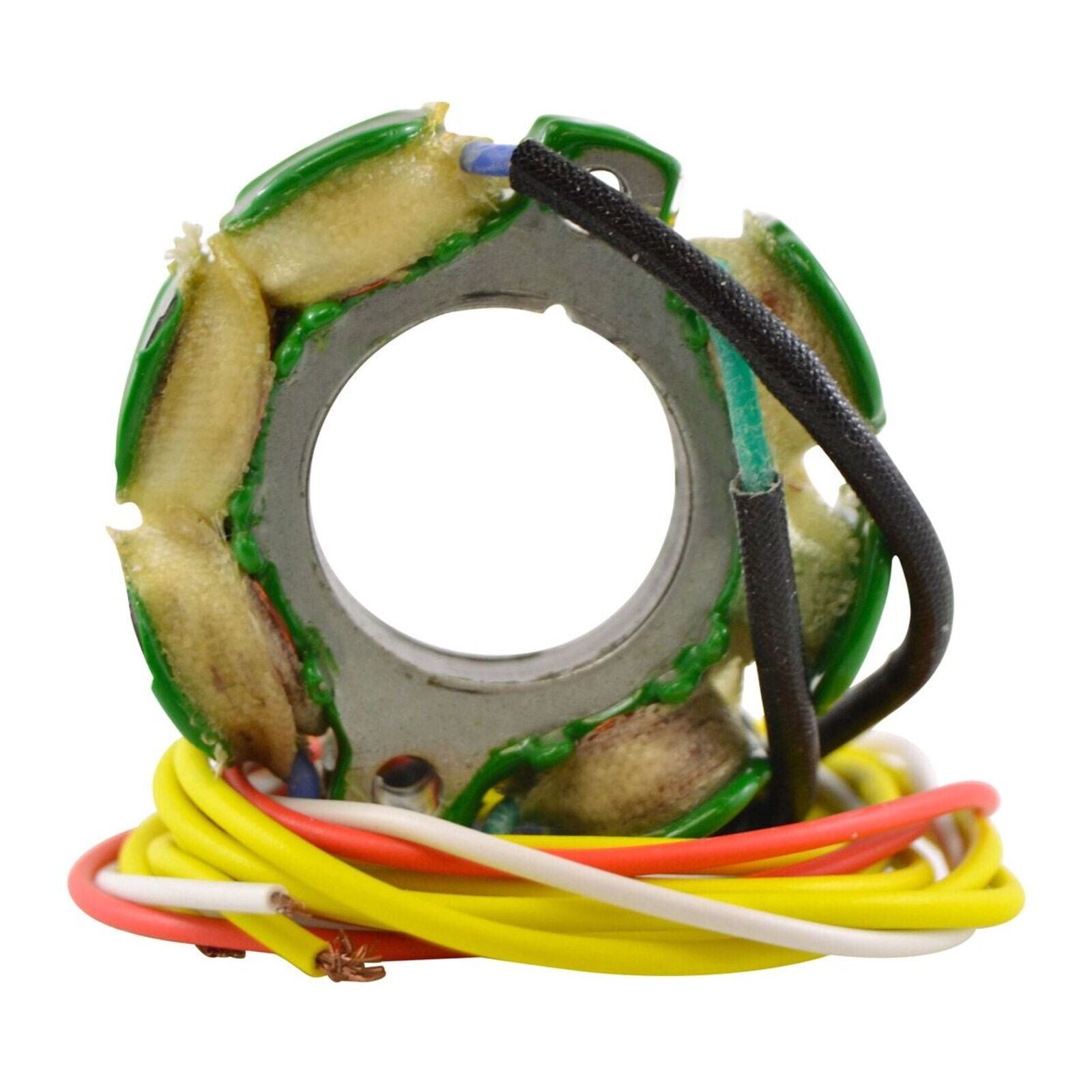

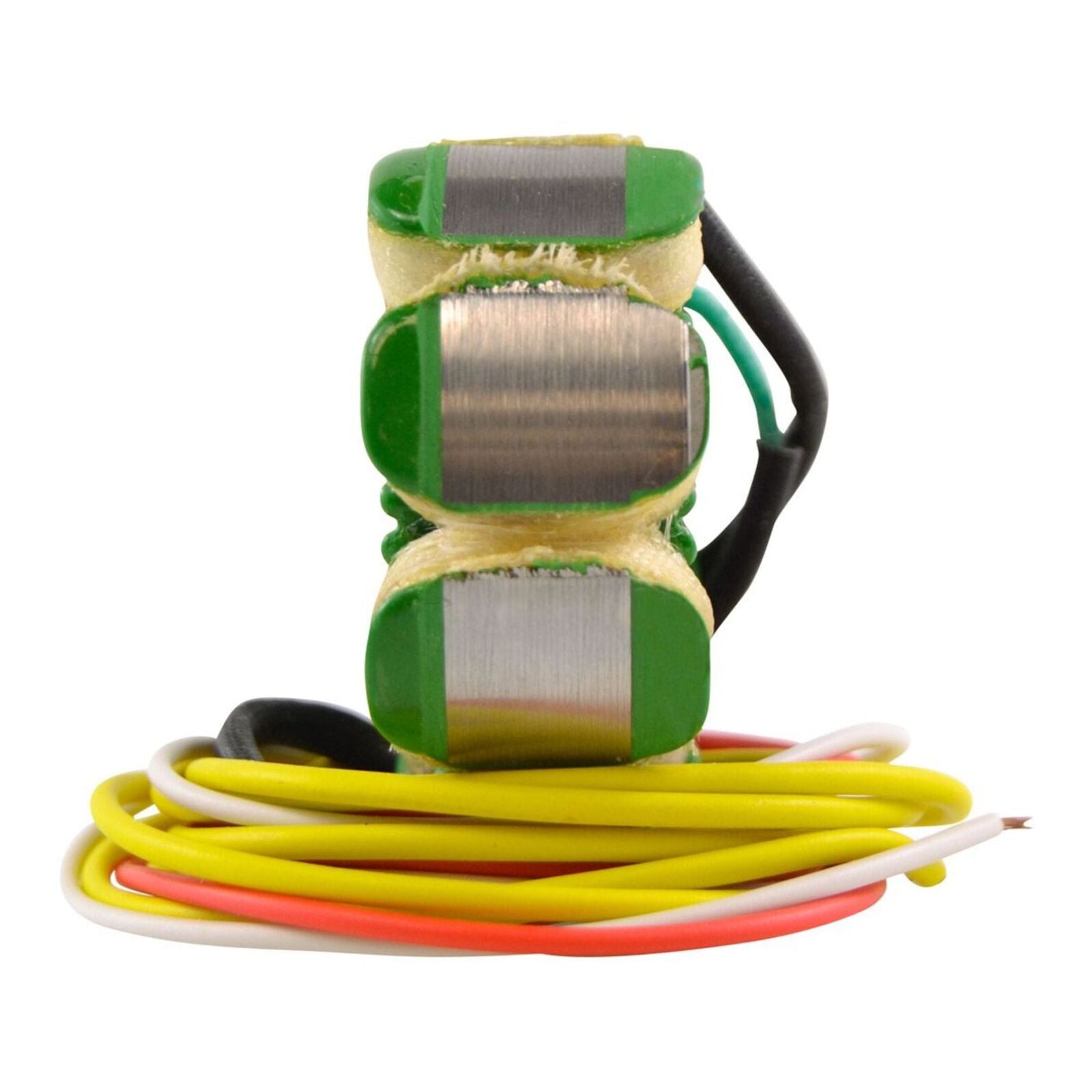

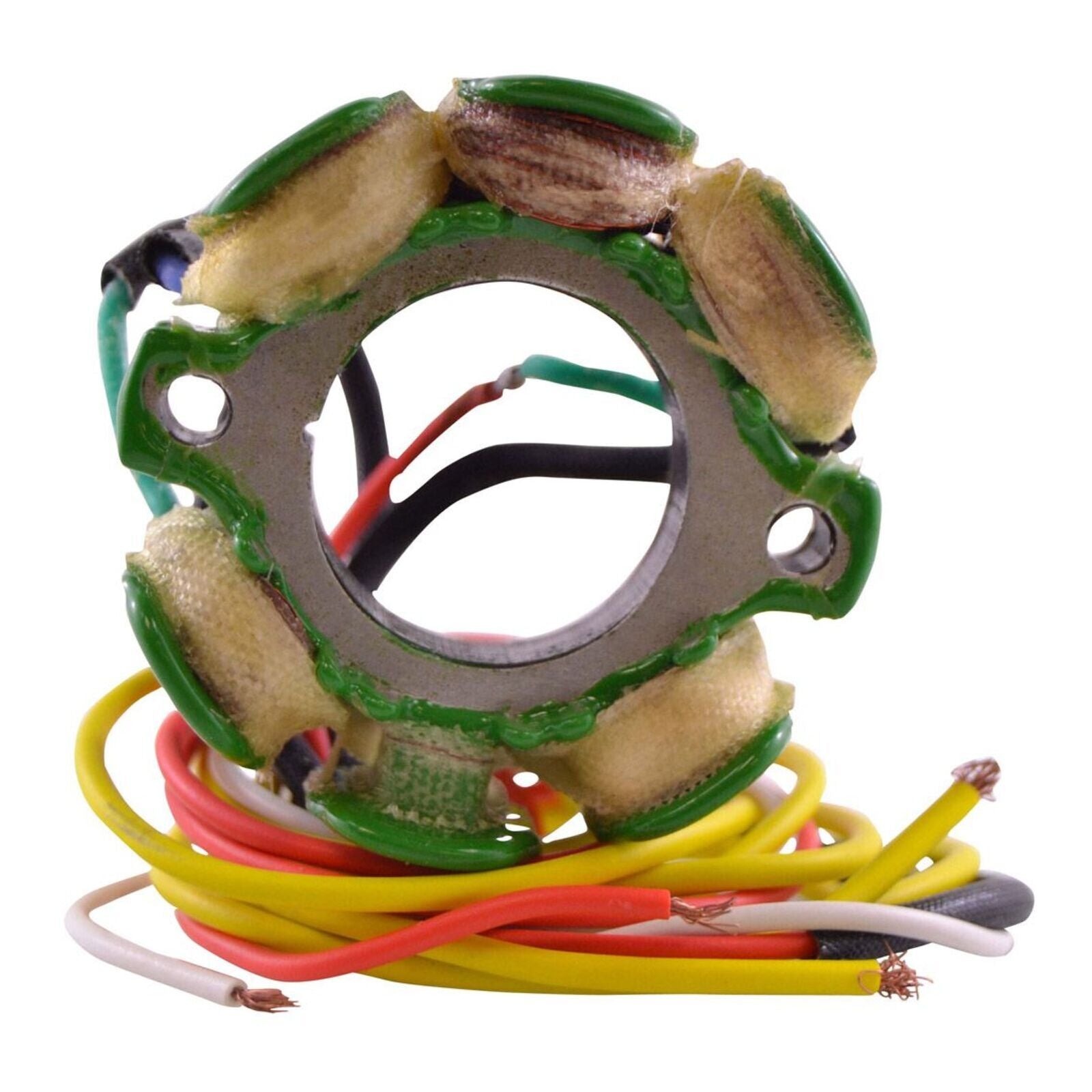

Dimensions Stator:
Physical Dimensions:
- Interior diameter: 28mm
- Exterior diameter: 57mm
- Thickness: 15mm
- Length of wires stator to terminals: 600mm
Other specifications:
- Number of wires: 4
- Number of plugs: 0
- Number of terminals: 4
Wire to wire resistance:
- Source 1 : Red to White = 28 ohms +/-20%
- Source 2 : Yellow to Yellow = 0.4 ohms +/- 20%

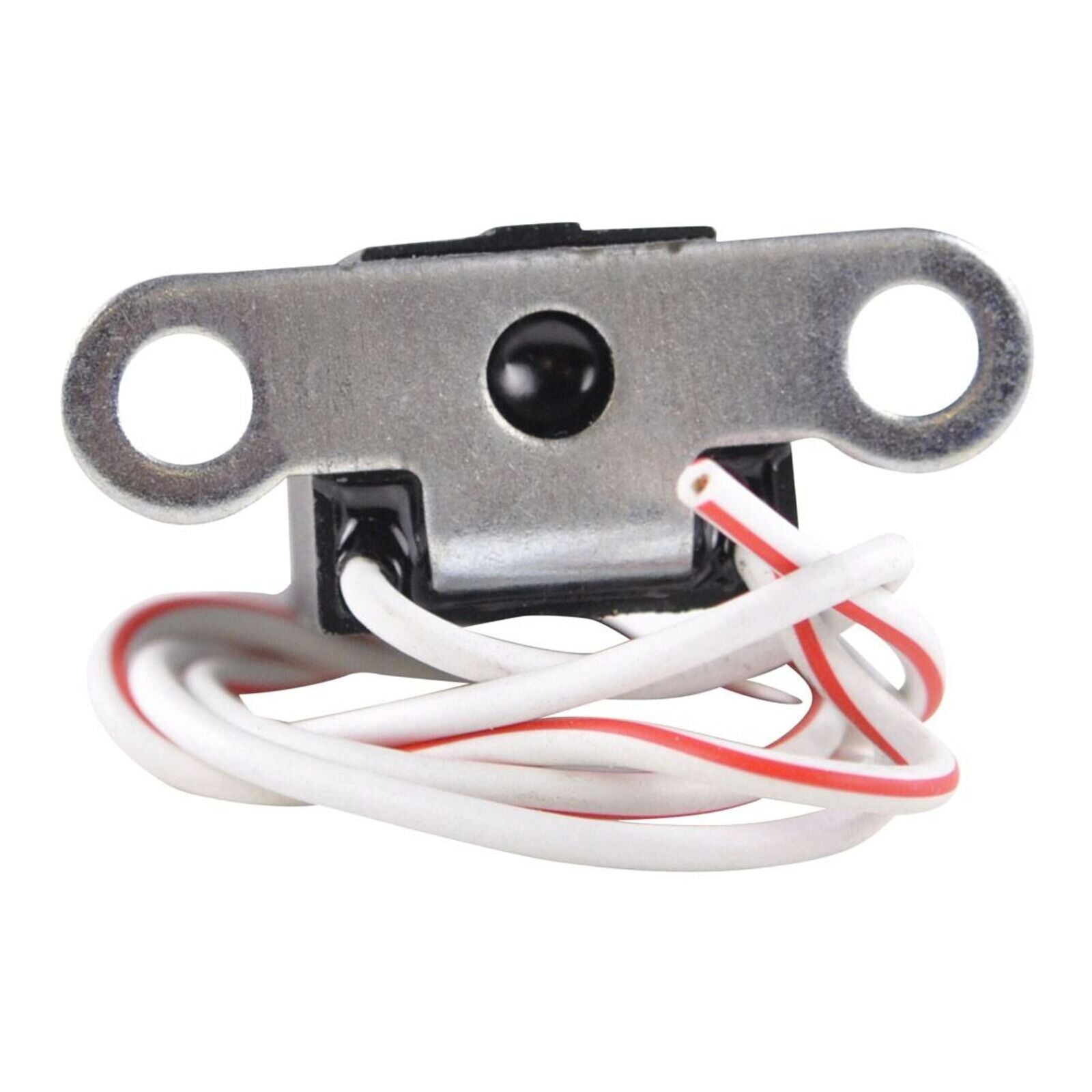

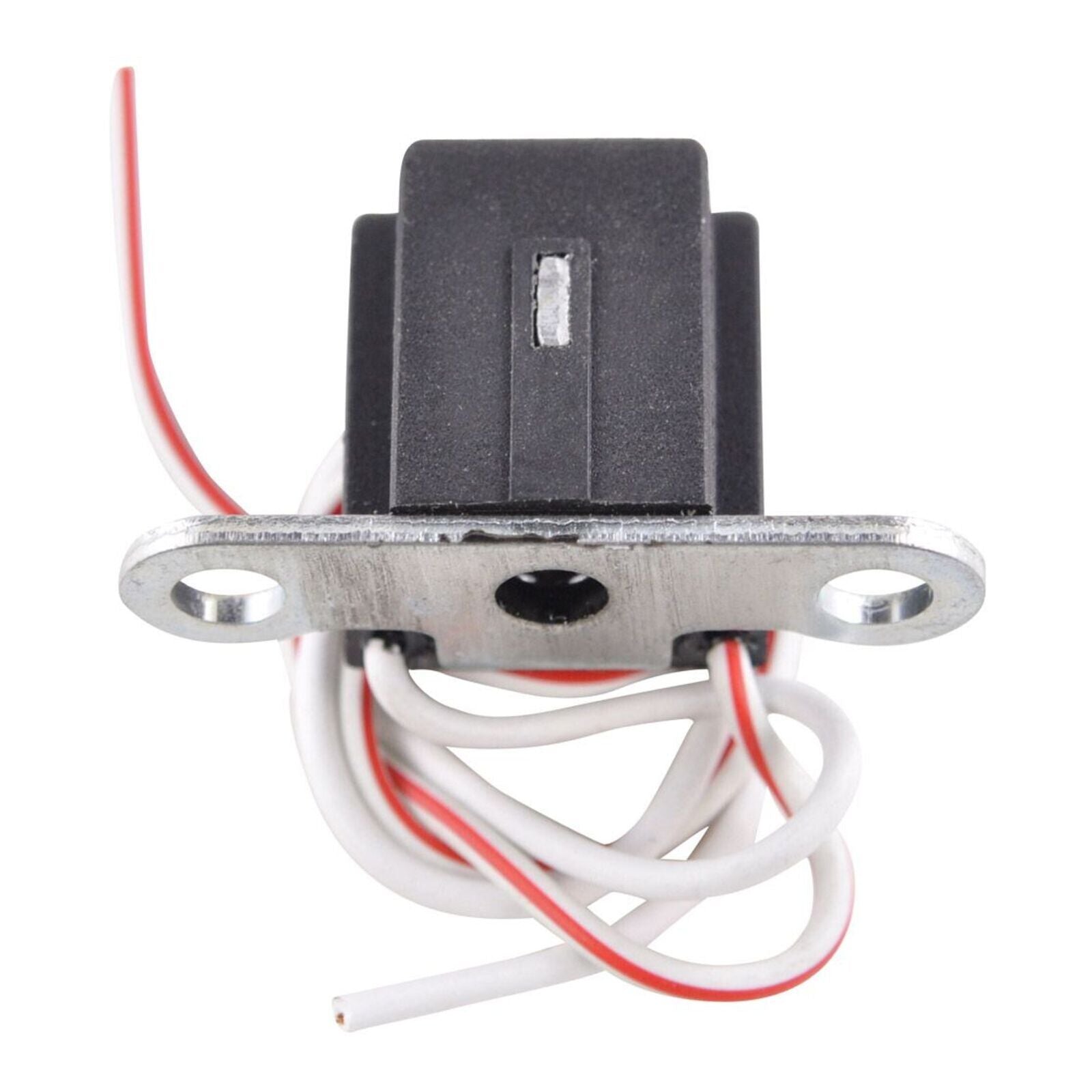

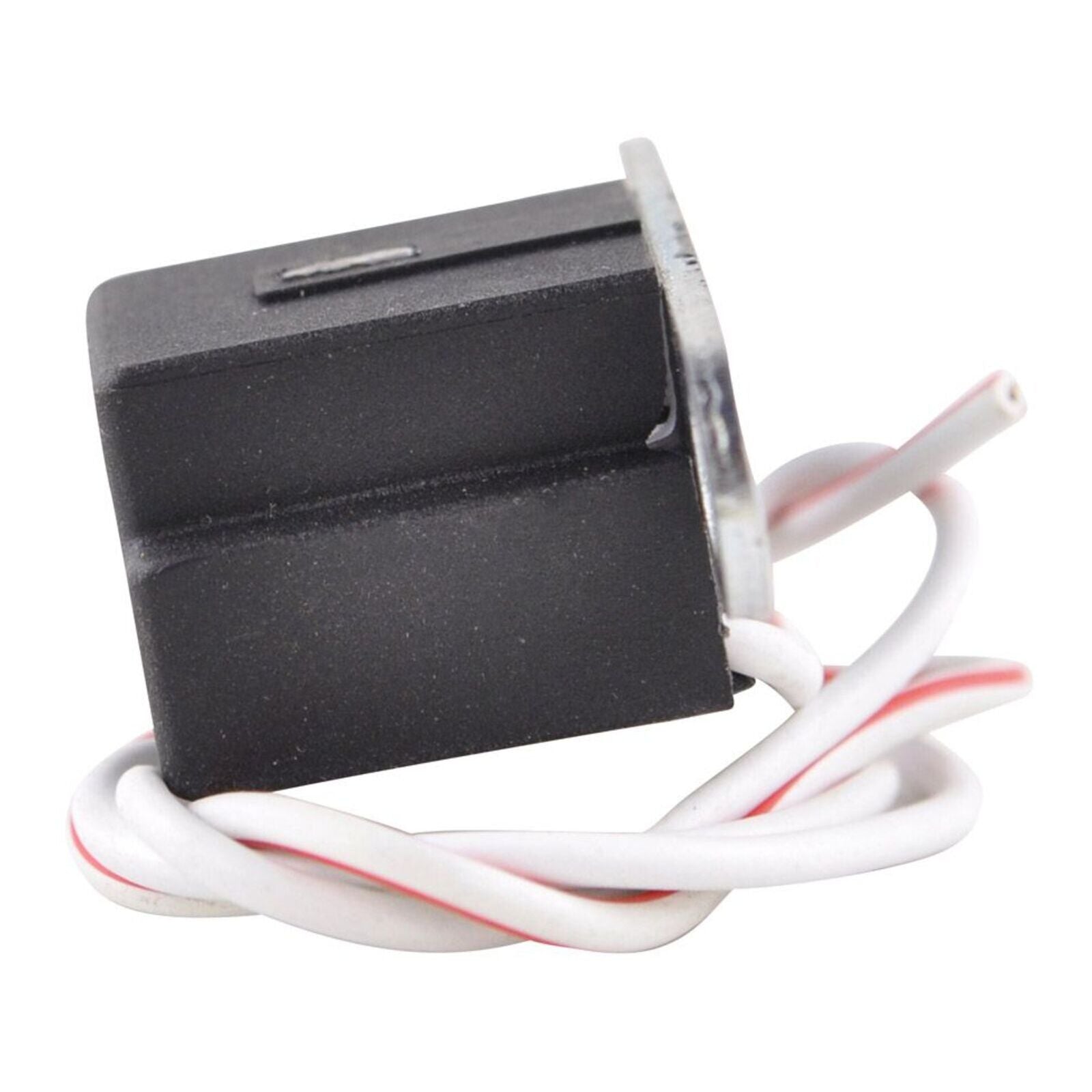

Dimensions Pickup Pulsar Coil:
Physical Dimensions:
- Height: 25mm
- Length: 22mm
- Width: 18mm
- Bracket centre to centre: 35mm
- Wires length: 90mm
Other Specifications:
- Number of wires: 2
- Number of pins: 2
Wire-to-Wire Resistance:
- Pink/Red to White = 100 ohms +/- 20%
