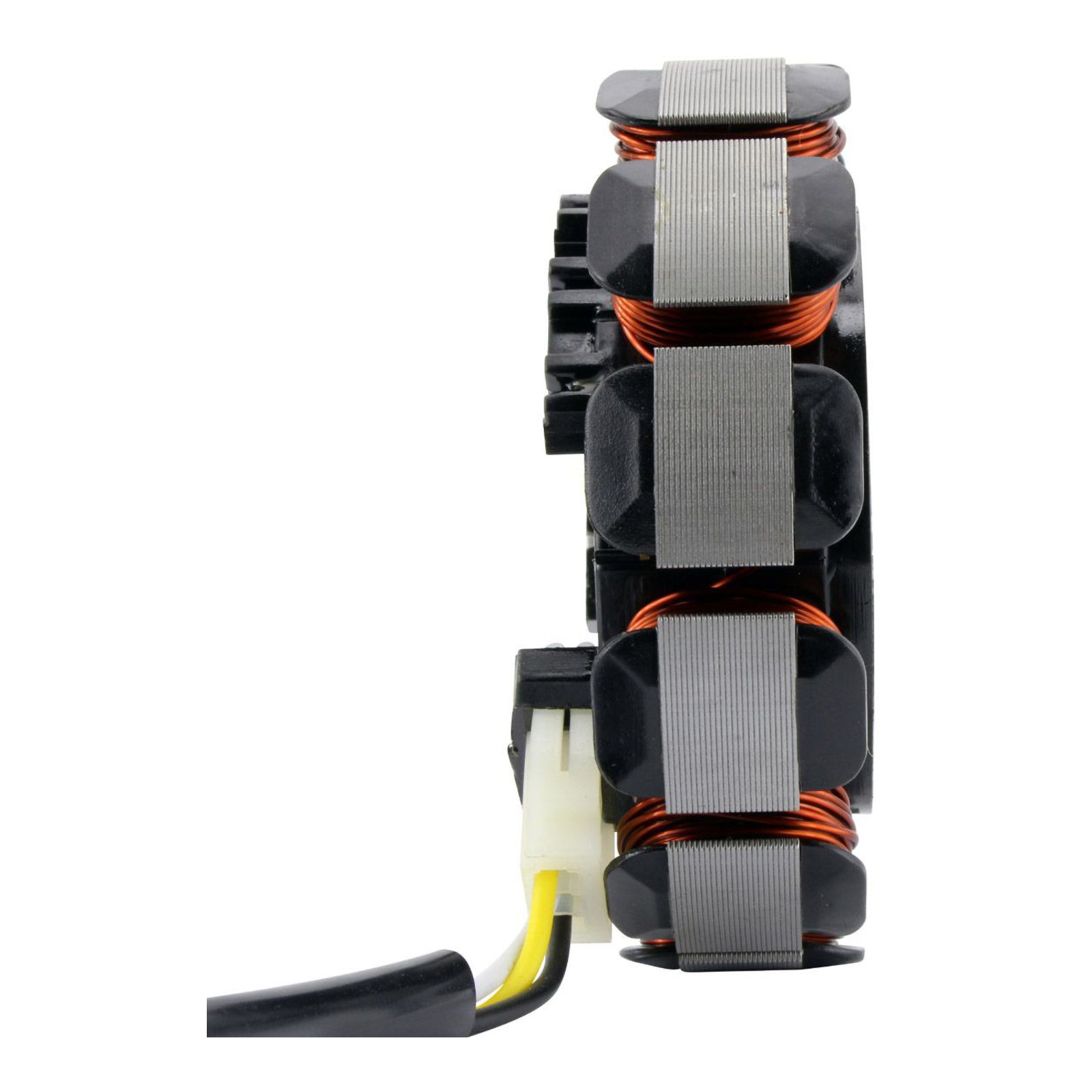

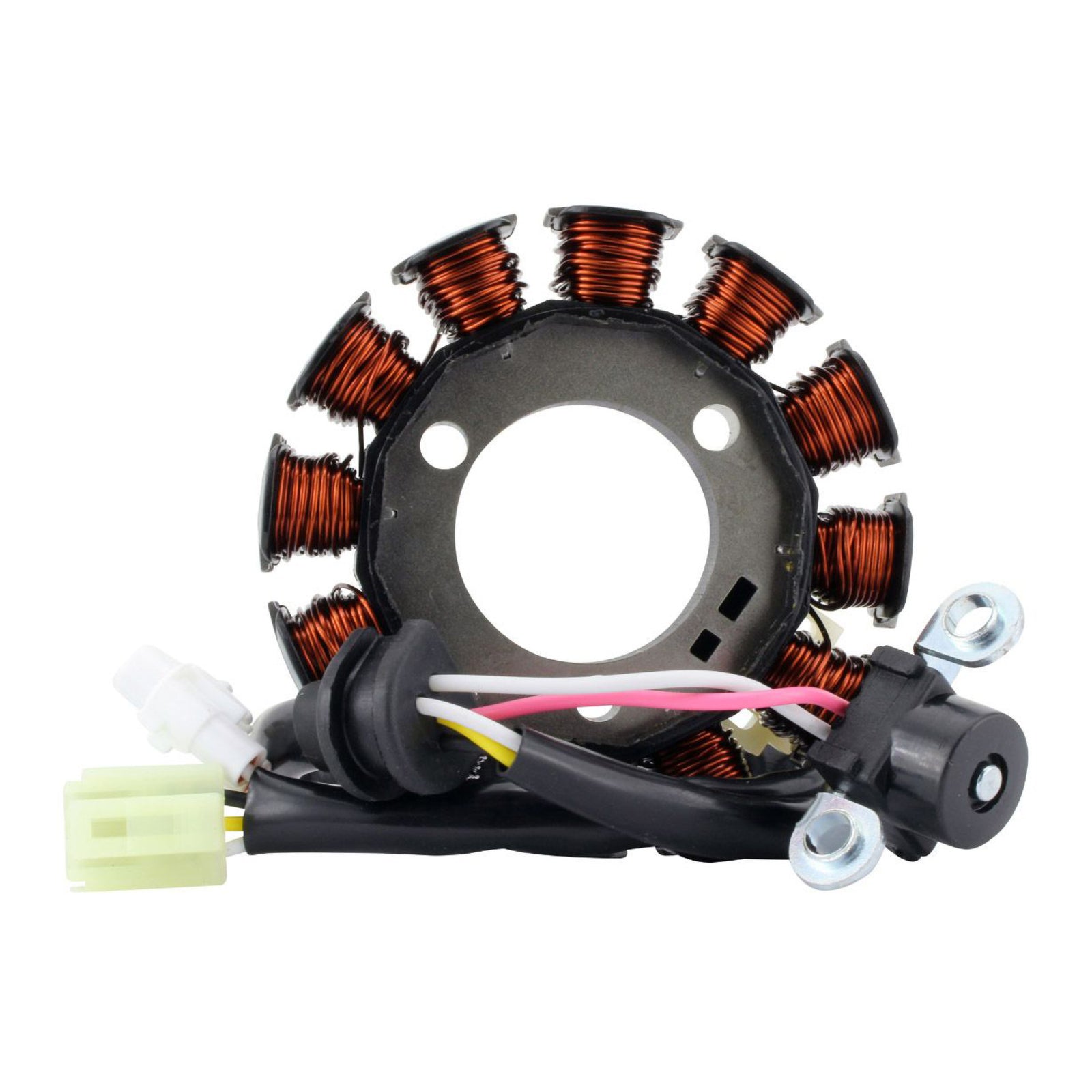

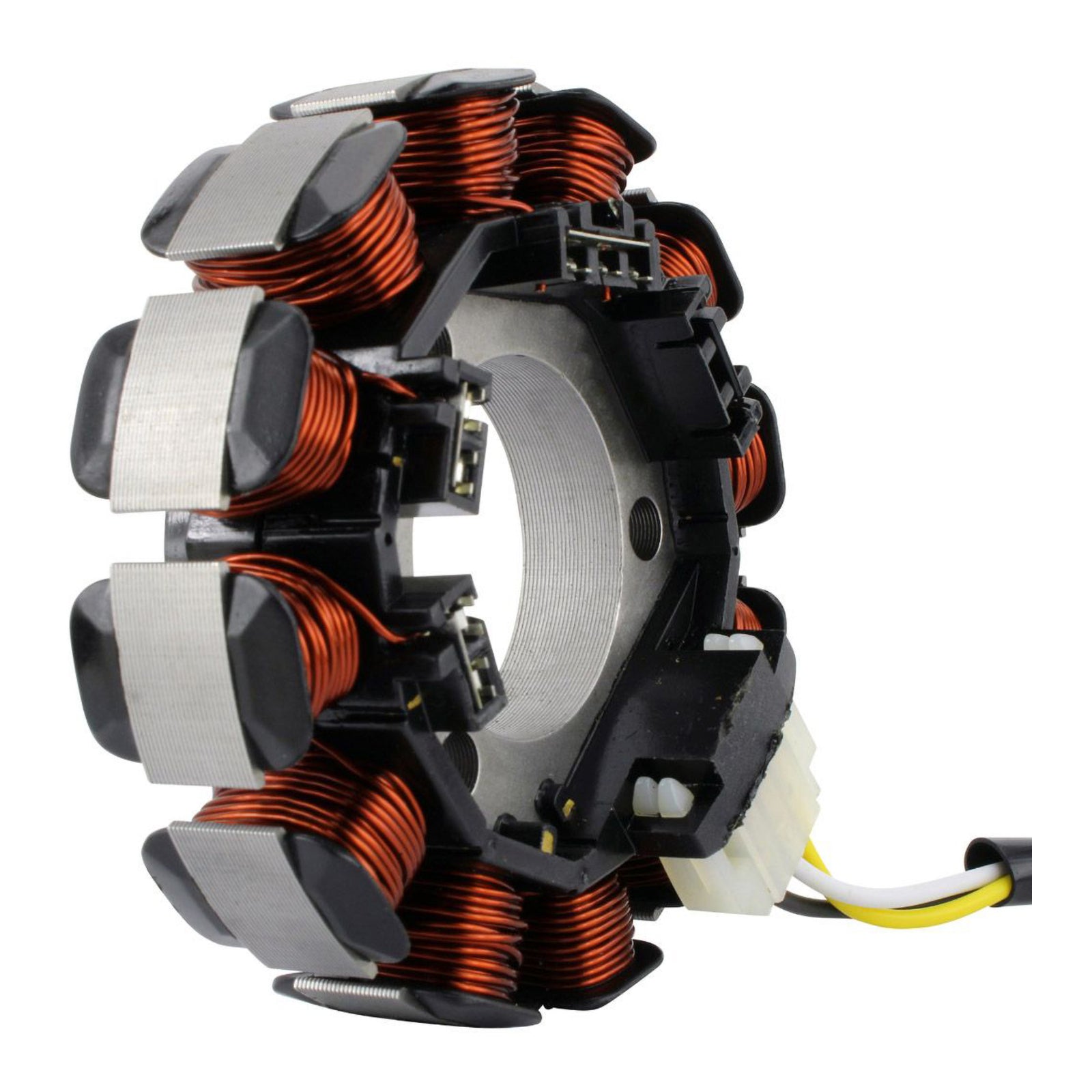

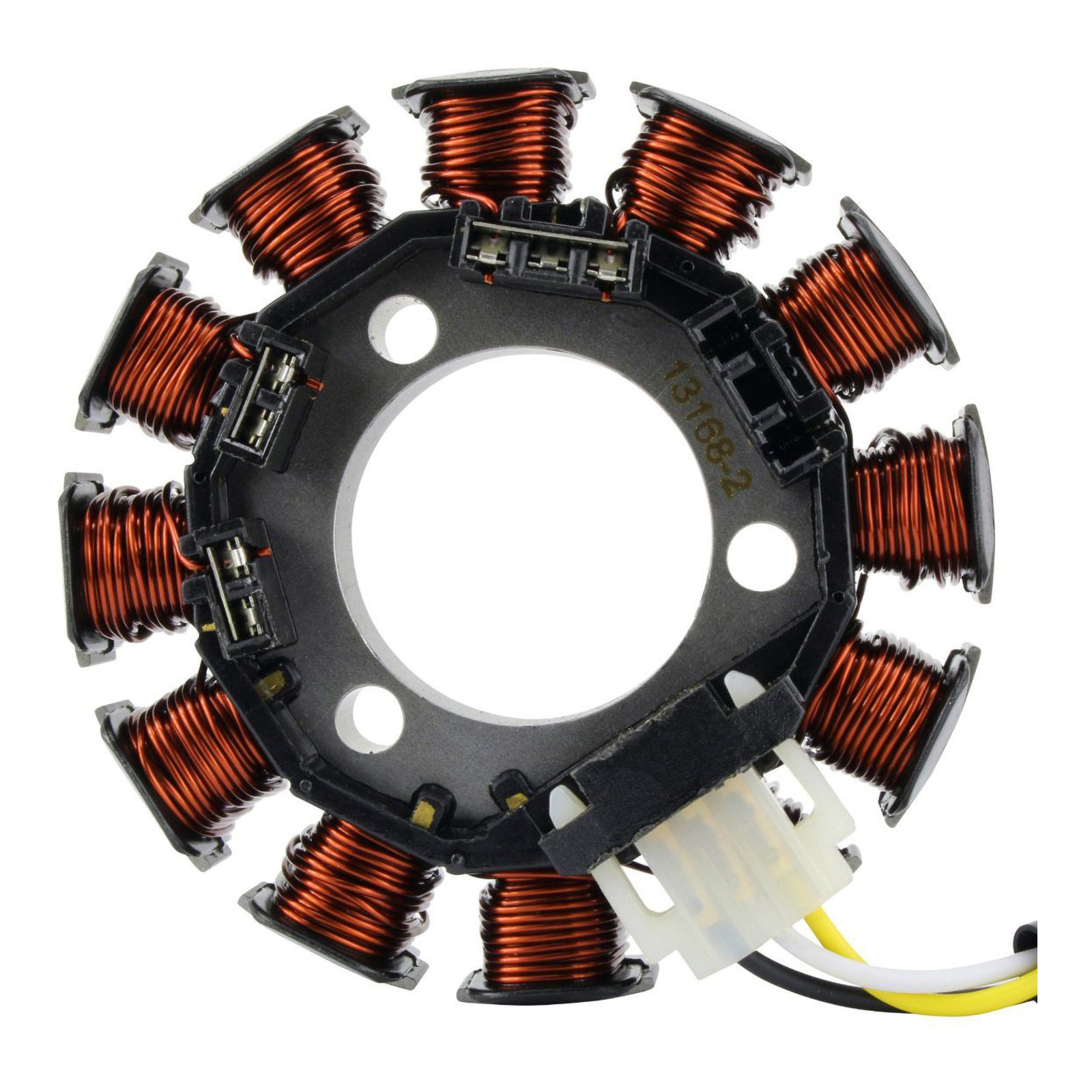

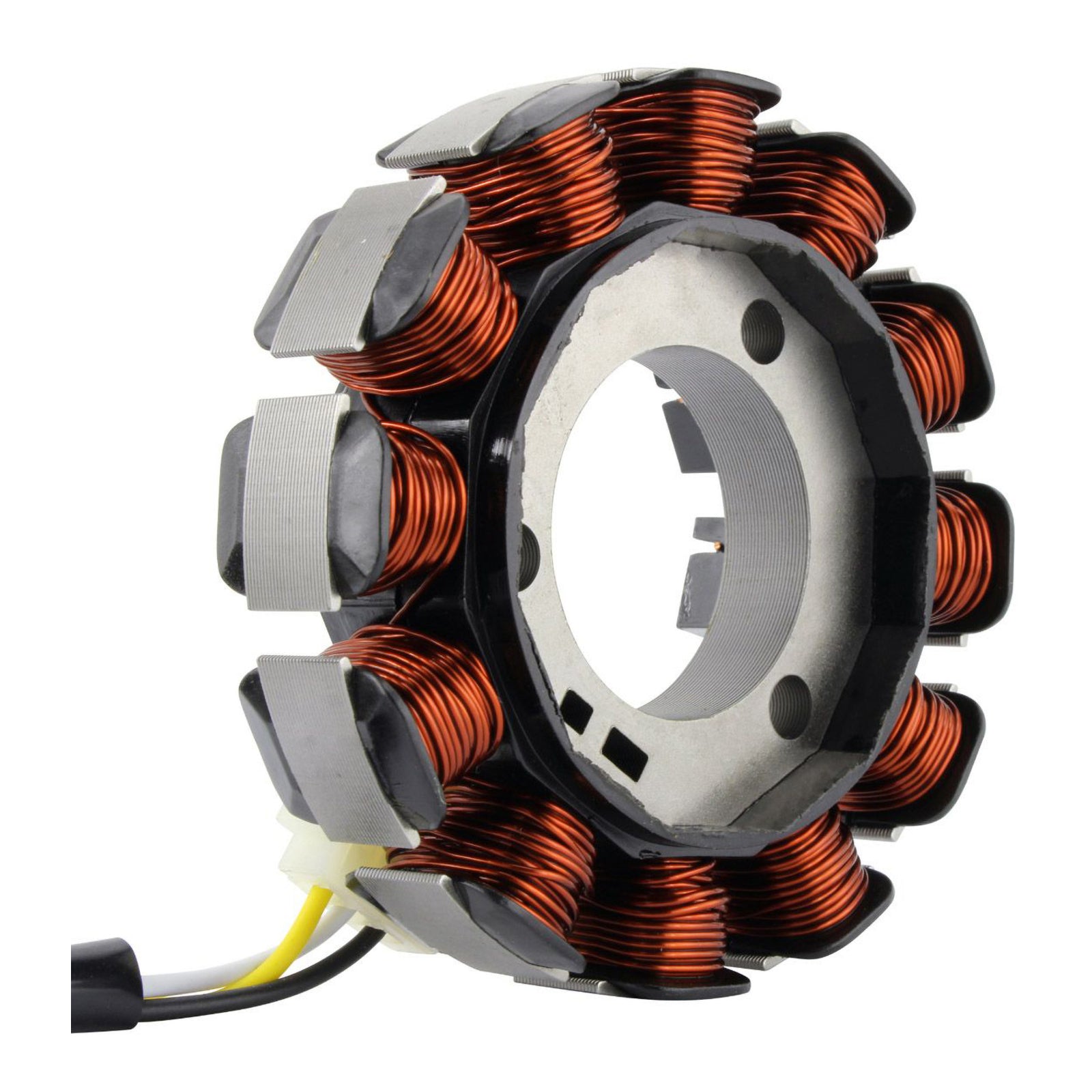

GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)

Regular price $159.91
/
Tax included.

Only 1 items in stock!

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation

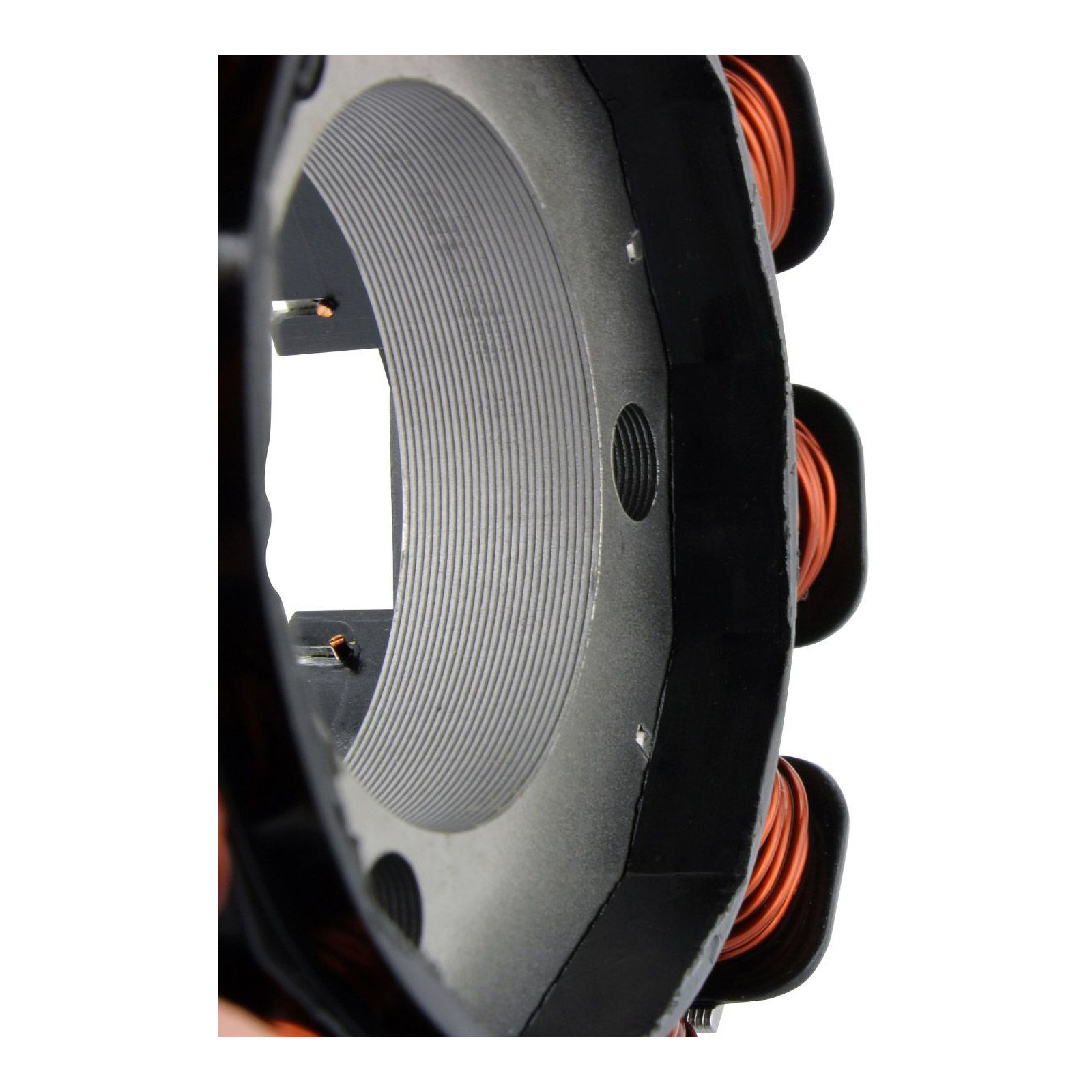

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

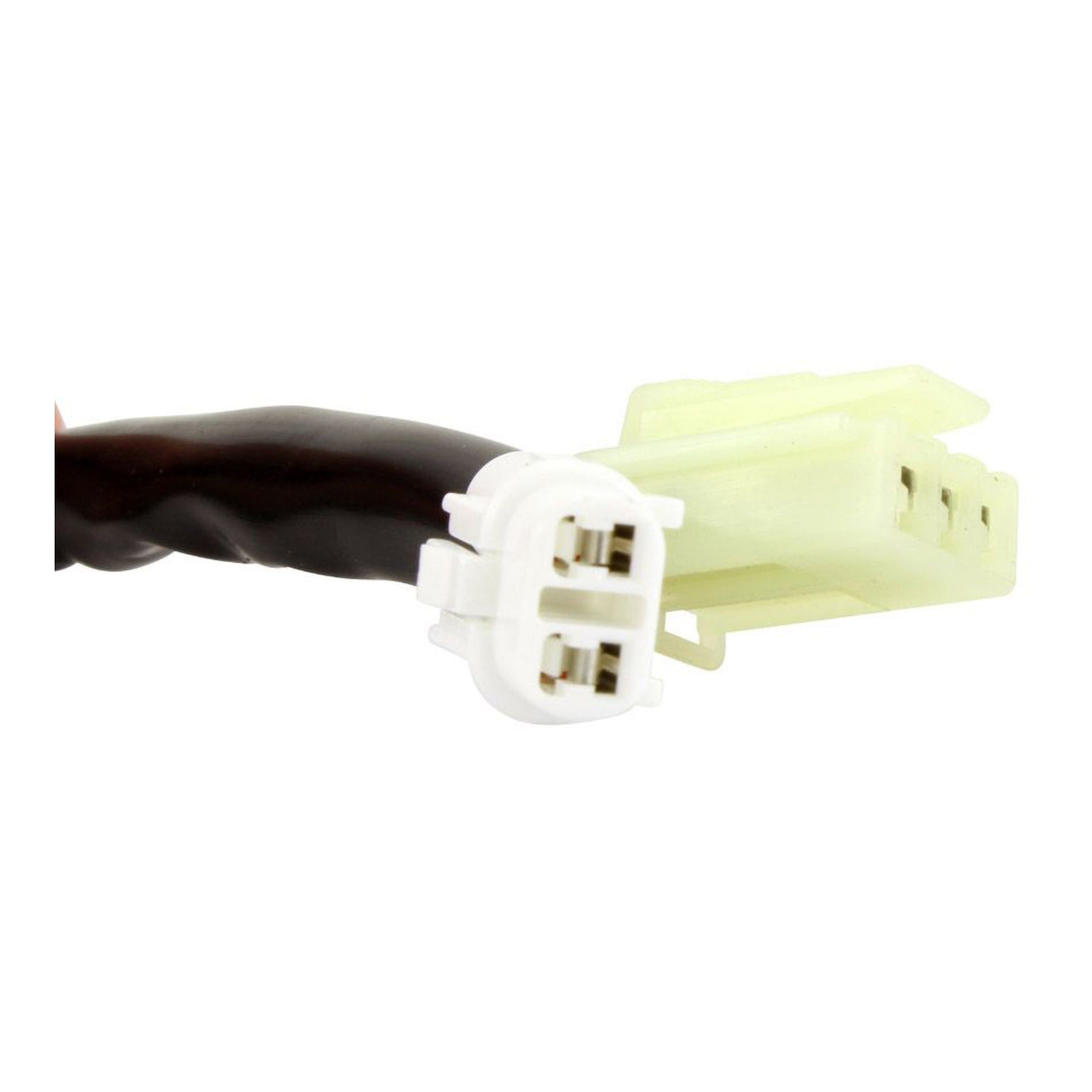

  • Connectors included

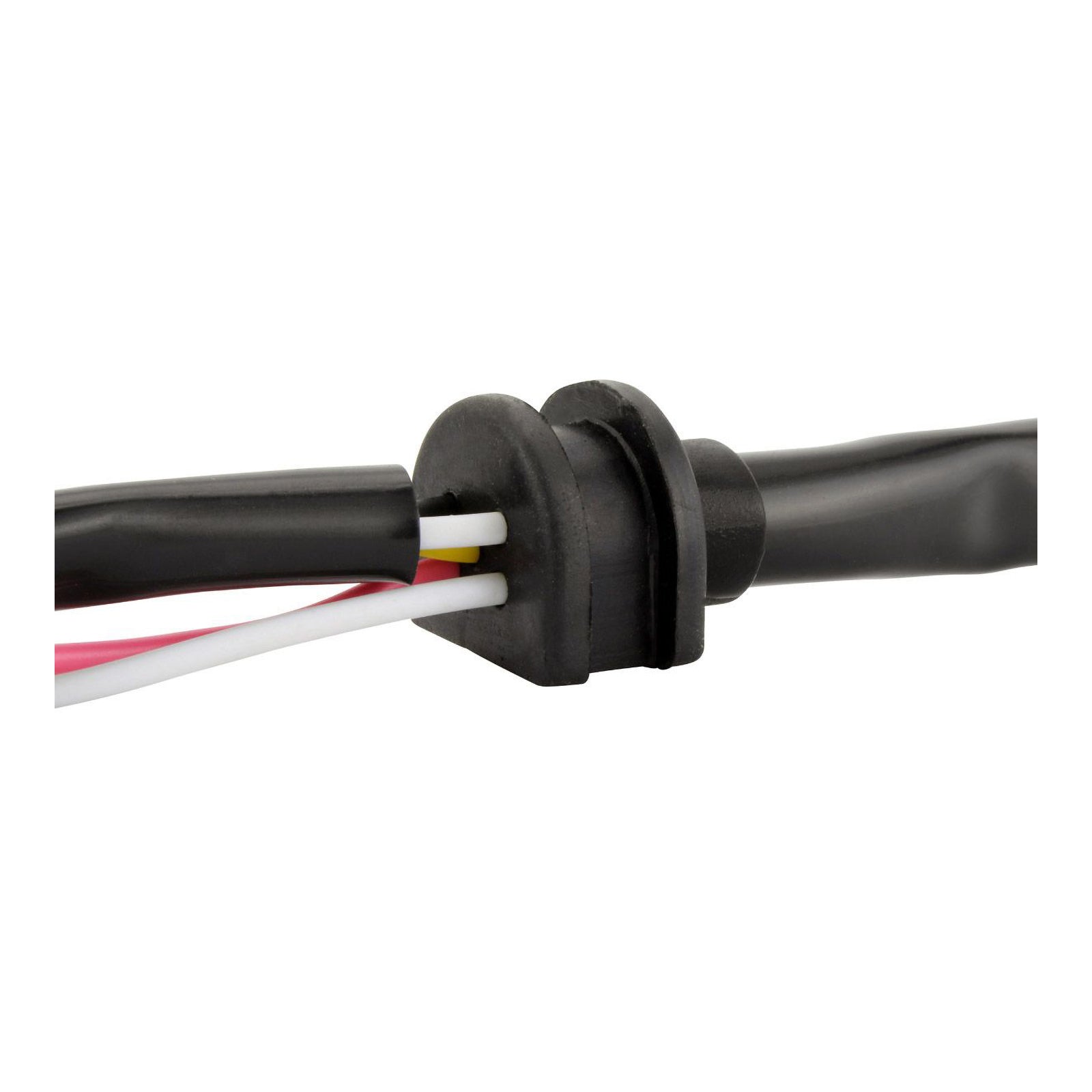

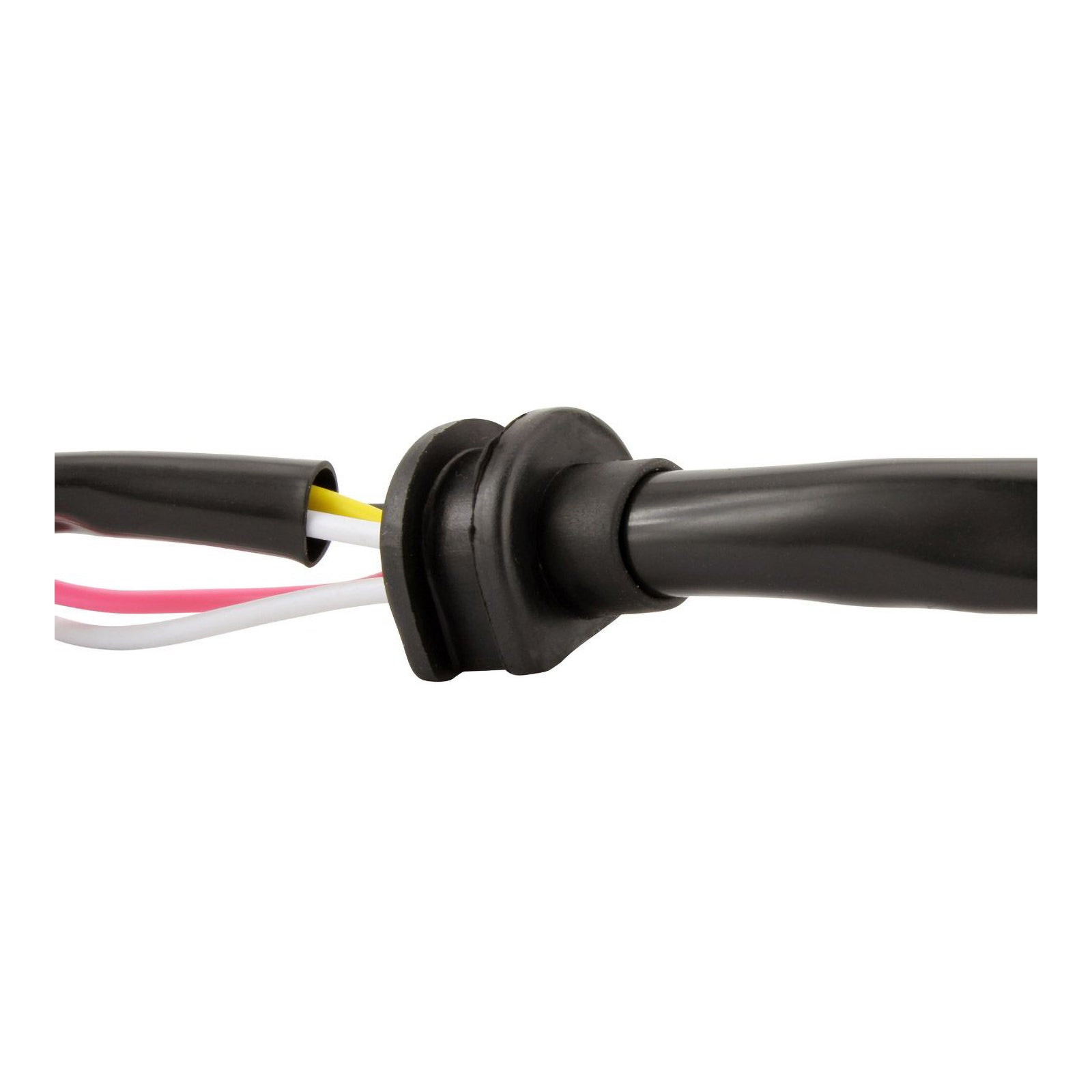

  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 37 mm
  • Exterior diameter: 92 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 90 mm
  • Length of wires grommet to plug: 280 mm
  • Length of pickup coil's wire to grommet: 55 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5

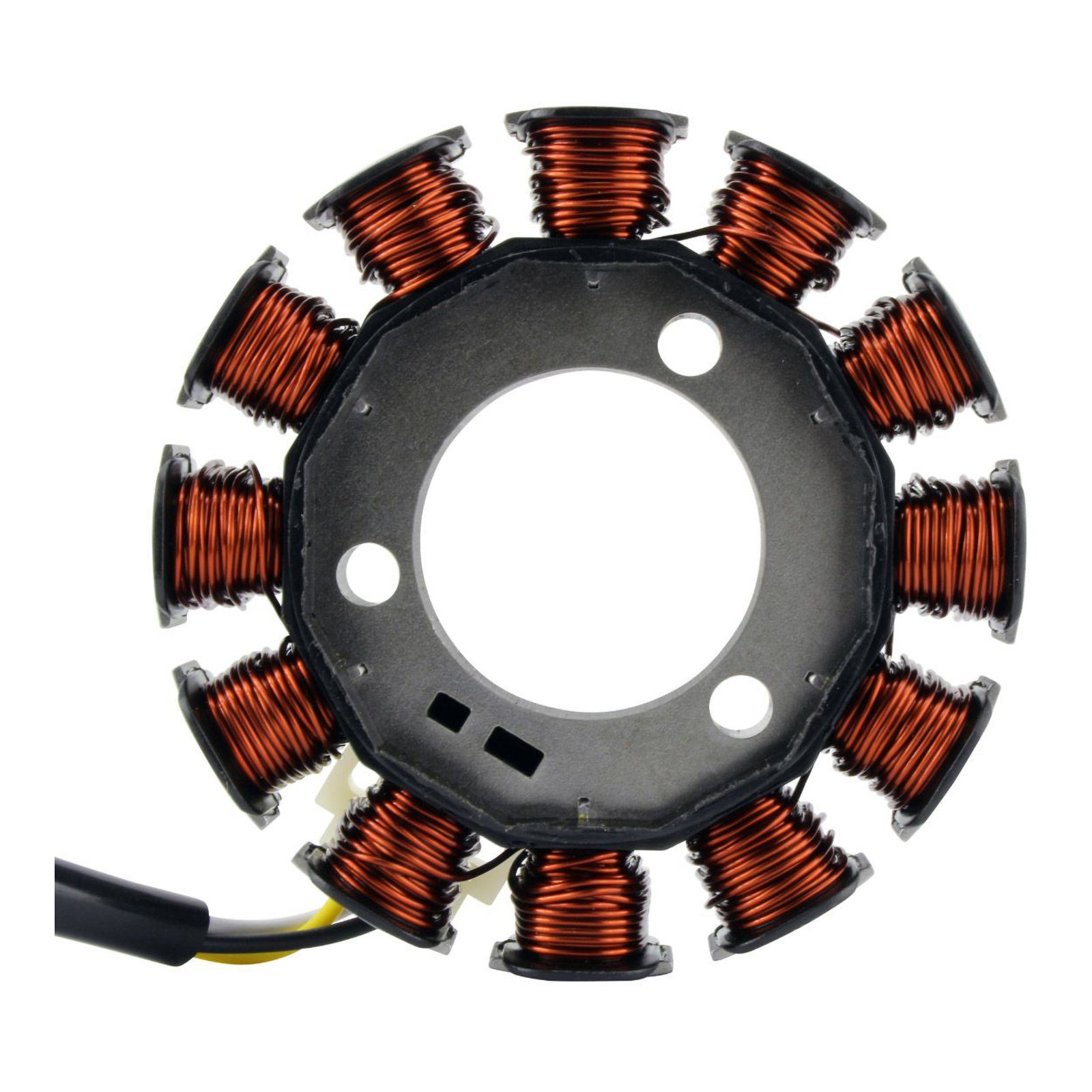

  • Number of poles: 12

Wire to wire resistance:

  • All 1p winding: Black to White = 0.9 ohms +-20%
  • Alternator #1: Yellow to Black = 0.6 ohms +-20%
  • Alternator #2: Yellow to White = 0.8 ohms +-20%

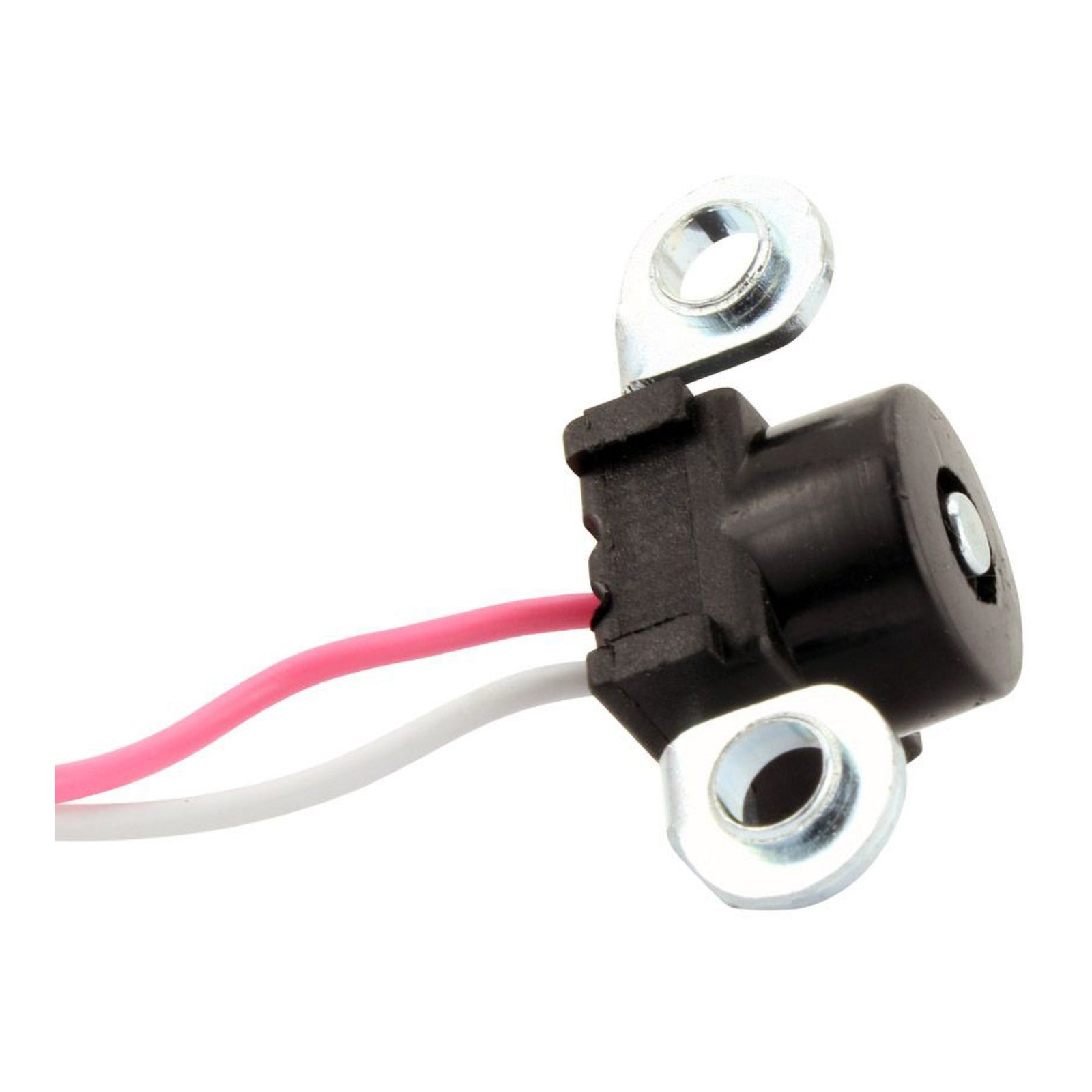

  • Pickup: Pink to White = 280 ohms +-20%
