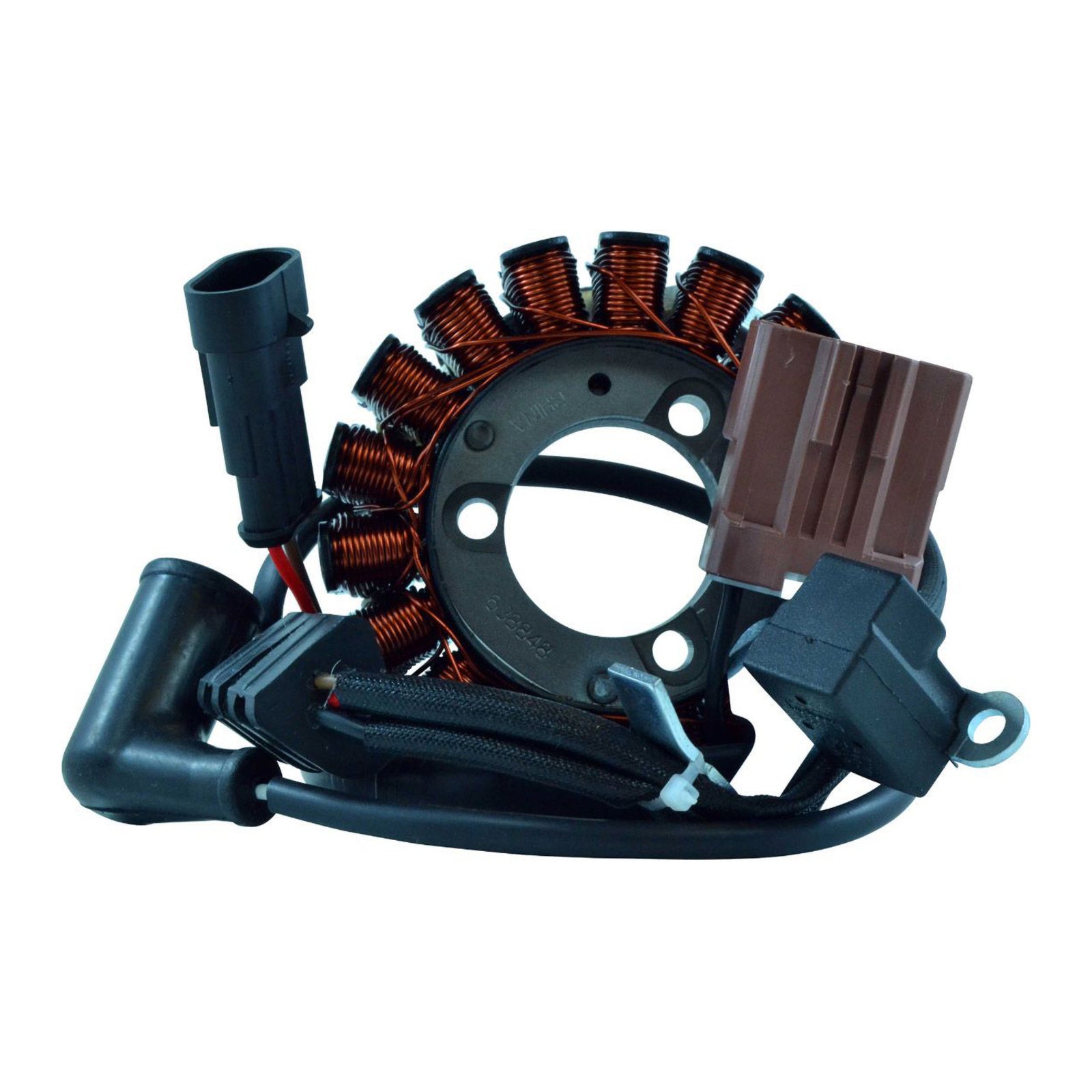

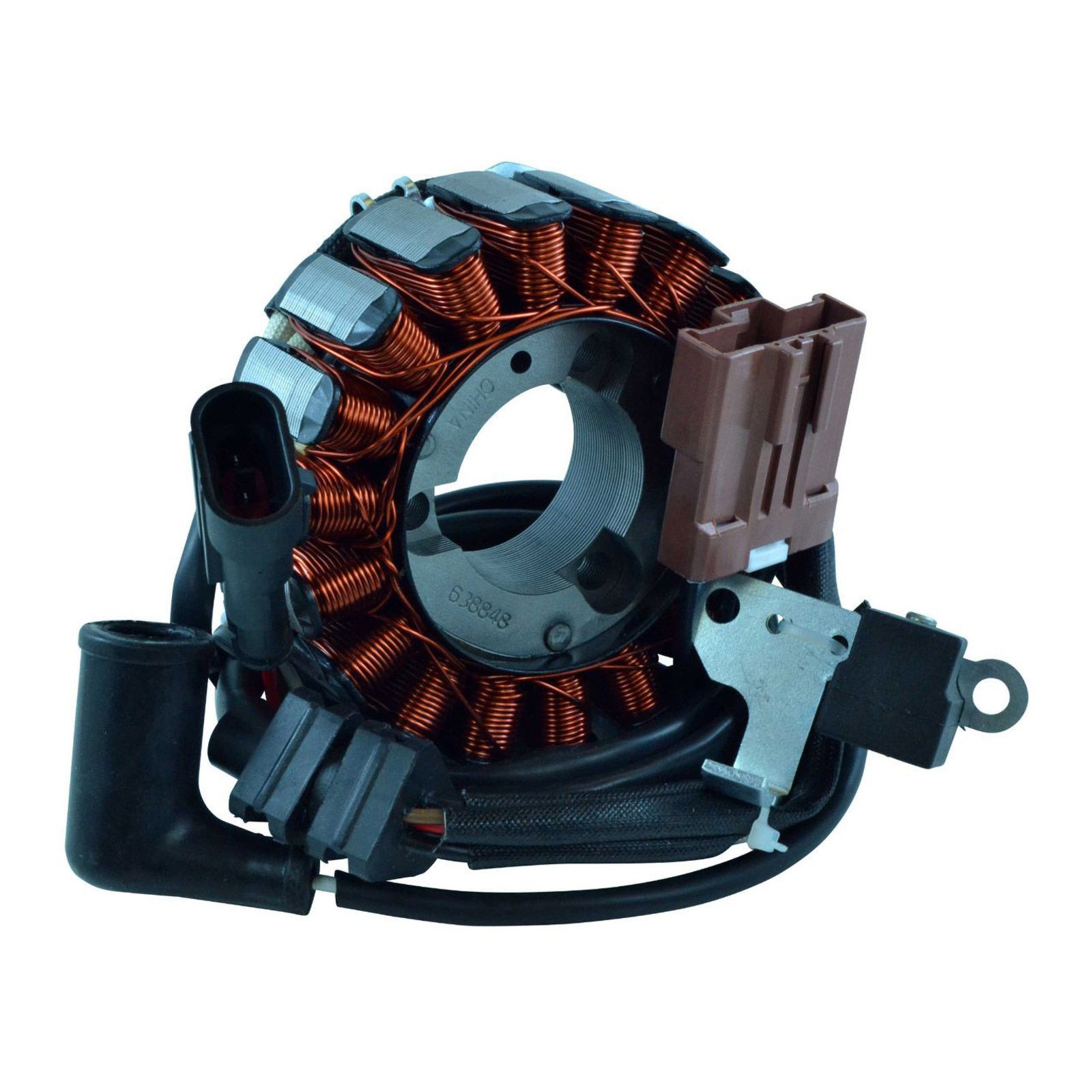

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick-up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 36 mm
- Exterior diameter: 95 mm
- Thickness: 32 mm
- Length of wires stator to grommet: 165 mm
- Length of wires grommet to plug: 585 mm / 780 mm
- Length of pickup coil's wire to grommet: 88 mm
Other specifications:
- Number of wires: 6
- Number of plugs : 3
- Number of pins: 6
- Number of poles: 18
Wire to wire resistance:
- Alternator: Yellow between each Yellow = 0.4 ohms +-20%
- Pickup: Green/White to Yellow/White = 125 ohms +-20%
- Source: Black/Red to Ground = 210 ohms +-20%
